Pharmaceutical Glass Packaging
>
|
|
| Place of Origin | China |
| Brand Name | FourStar |
| Certification | CE, ISO |
| Model Number | 2ml~20ml |

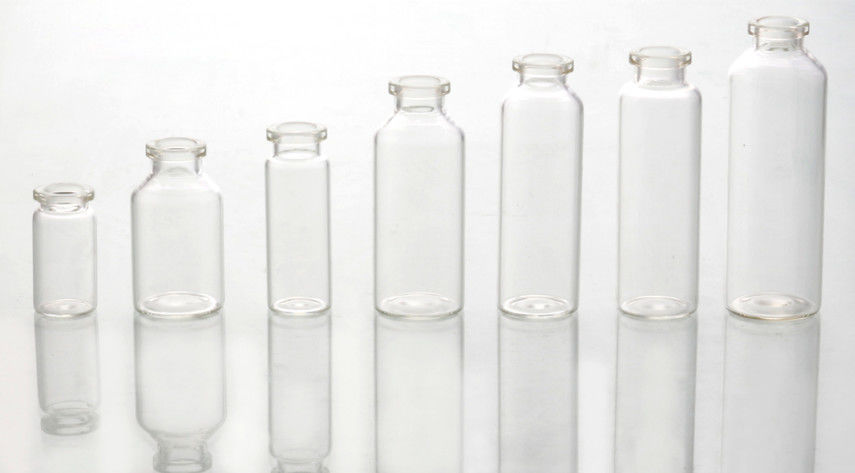

Pharmaceutical/perfume/cosmetics/ liquid/essential oil medical tubular glass vials
Company Brief Introduction:
FourStar Group is one of the biggest pharmaceutical glass manufacturer with two professional production bases in China, located at Cangzhou city of HeBei Province, established in the year 1988, Occupied land: 133,200 square meters workshop.
We always looks up technology improvement, in fiscal 2015 increased technical R&D input, the capital of which got 7% of sales income for technical innovation. Four-star R&D resulted neutral borosilicate glass tubing (expansion coefficient: 5.0) with huge investment in 2006. We designed by ourselves the full process from raw material preparation to melting, tube-drawing, up to products packaging and loading into warehouse. We also imported the most advanced ampoule-making machines in the world from Europe to support our excellent products. In addition, our company has gotten 38 patents, 2 of which are invention patents. More16 patents are under application. We still enhance the management of know-how and technology updating to build our comprehensive competition.
Currently,with more than 800 employees and 75 technicians and engineers, 33 R&D members.
Now we have 5 glass furnaces and 78 production lines. Which is in the leading position in China.
Our annual production capacity exceeds 20 million glass vials,30 million Ampoules, 26 million pharmaceutical glass tubing. And 40% of them are amber glass tubing.
Glass vials Specification sheet:
| Module Size (ml) | Vertical axis deviation | Body Diameter | Bottle Mouth Diameter | Inner Mouth Diameter(d3) | Overall Height(h1) | Bottle Mouth Edge Thickness | Bottom Thickness (s) | |||||
| (a) | (d1) | (d2) | (h2) | |||||||||
| Basic Size | Limit Deviation | Basic Size | Limit Deviation | Basic Size | Limit Deviation | Basic Size | Limit Deviation | Basic Size | Limit Deviation | |||
| 2 | 1 | 16 | ±0.15 | 13 | 0.2 | 7 | ±0.2 | 35 | ±0.5 | Along the 3.2 (from the roots reach amount 3.9) | ±0.2 | 0.6 |
| 4 | 45 | |||||||||||
| 6 | 1.2 | 22 | ±0.2 | 20 | 12.6 | 40 | 0.7 | |||||
| 8 | 45 | |||||||||||
| 10 | 24 | 45 | ||||||||||
| 15 | 60 | |||||||||||
| 20 | 1.5 | 30 | ±0.25 | 55 | ±0.7 | |||||||
| 25 | 65 | |||||||||||
| 30 | 75 | |||||||||||
| Item: | Tubular Glass Vial |
| Material: | Glass |
| Volume: | 1ml ~30ml |
| Color: | Clear, Amber. |
| Cap Type: | Rubber Stopper, Silicone Stopper, Teflon Stopper, Dropper Cap, Screw cap and so on. |
| Application: | Frozen powder, Medical liquid and so on. |
| Appearance: | Frost, silk screening, painting, electroplating and so on. |
| Packaging: | Paper box packing, shirnk wrap, Private label logo... |
| LTE : | 3.0, 5.0, 7.0. |
| Service: | OEM & ODM are welcome. |
Glass Vial ISO Standard:
Production Line Pictures:
Warehouse:
shipments:
1. We would like to share the cost of mold half if you want to make a new style
2. Label printing : we can print the labels as your requirement.
3. Professional packaging or accept customize.
4. We have ISO9001 and SFDA certificates.
5. Free sample: We can supply free bottle for you to test quality.
6. Model making : We can produce models according to your own design.
7. Quality guarantee: We have 1:1 replacement for the defective ones.
8.Our tubular glass vial are made by hige quality borosilicate neutral glass.
